Pipe Flexibility Analysis

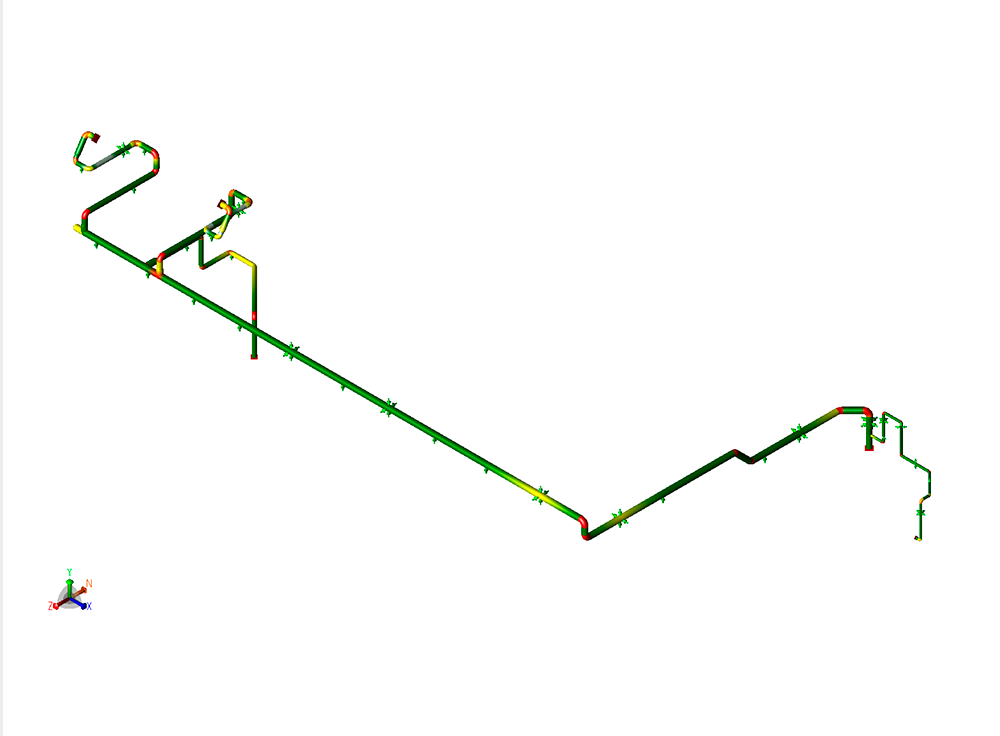

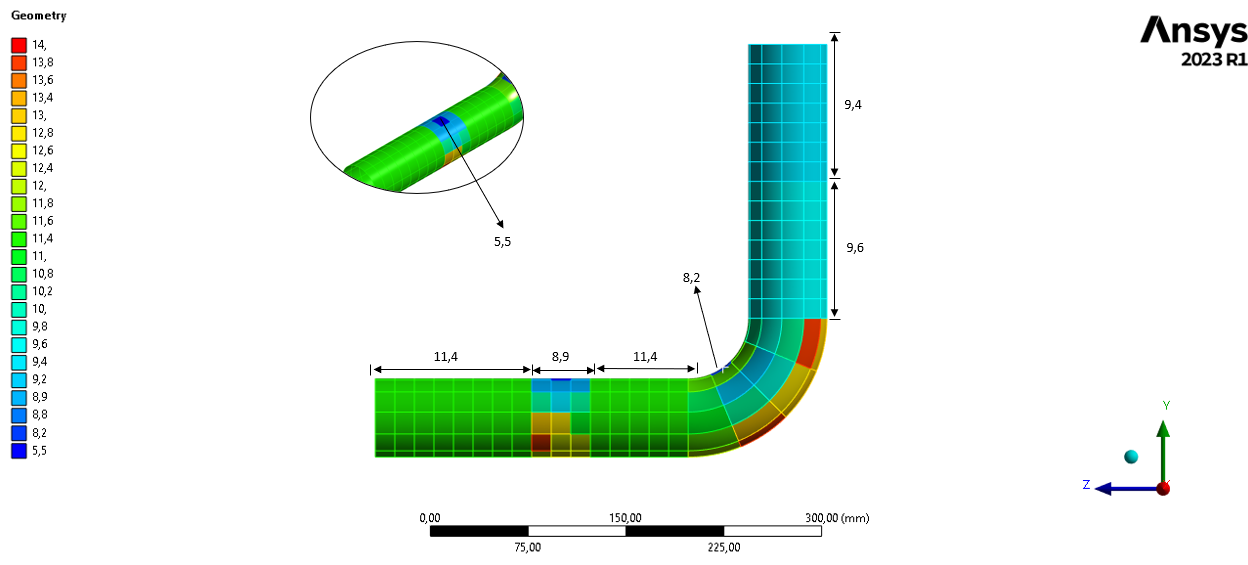

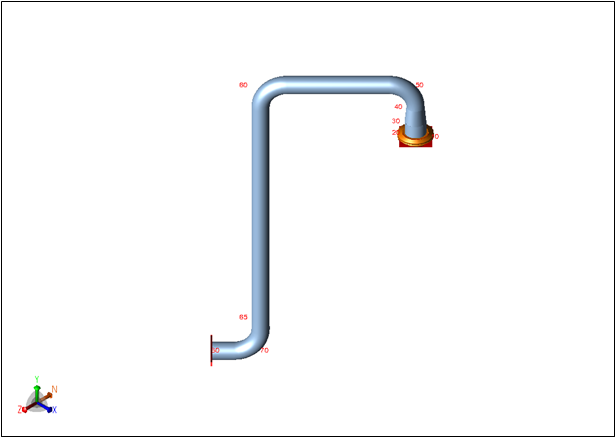

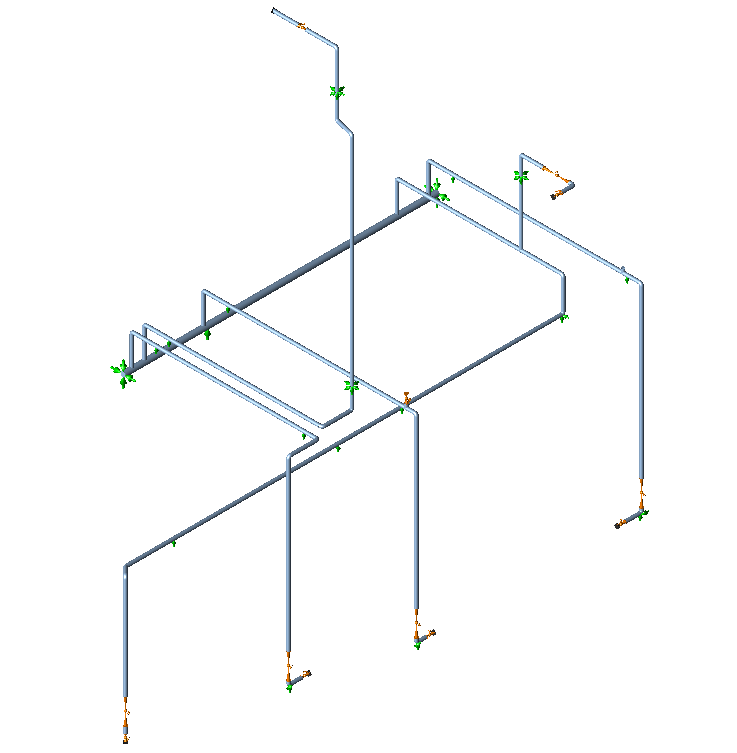

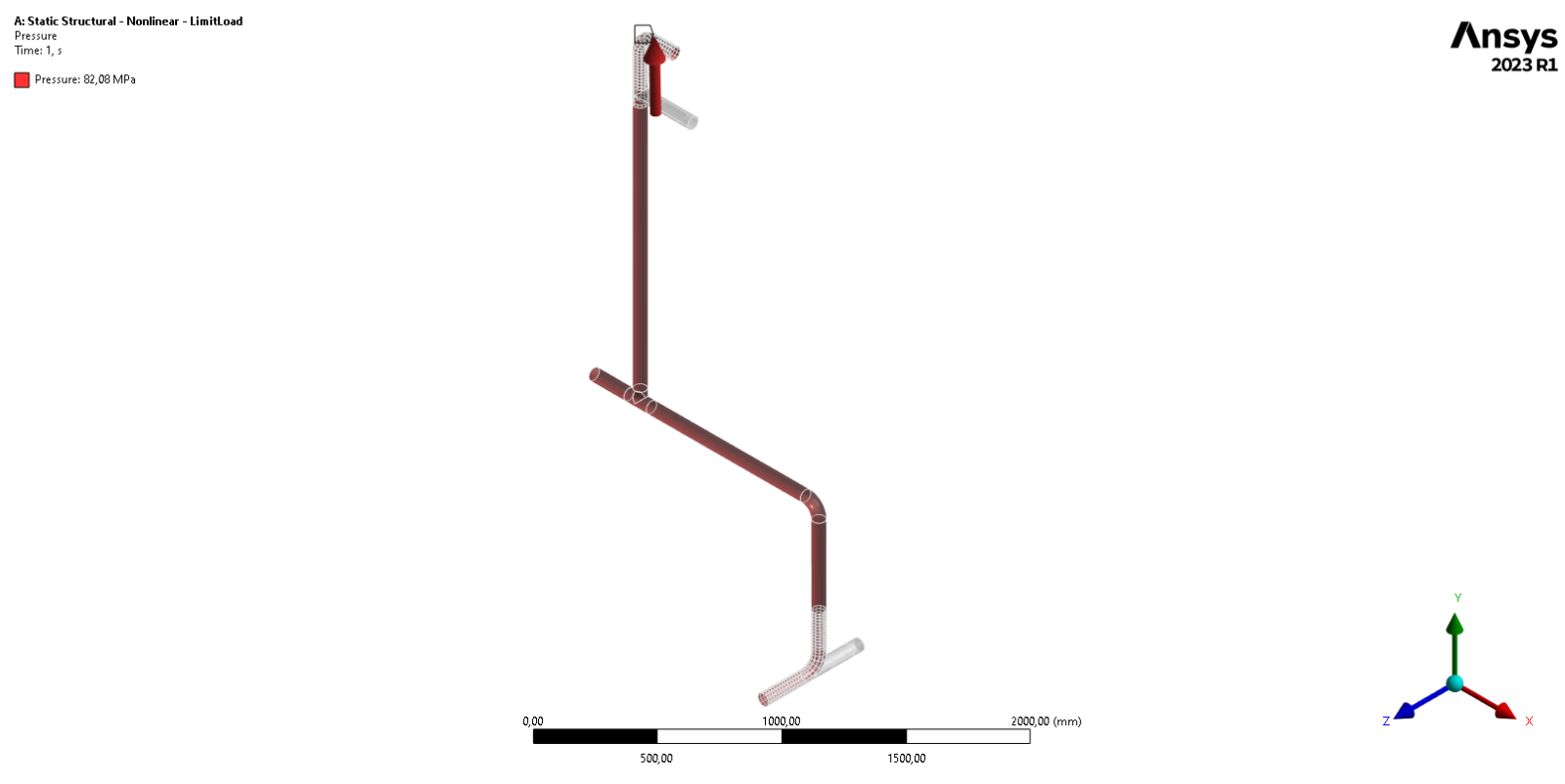

We assess piping systems through finite element-based flexibility analysis, ensuring compliance with piping codes such as ASME B31.3 and B31.1.

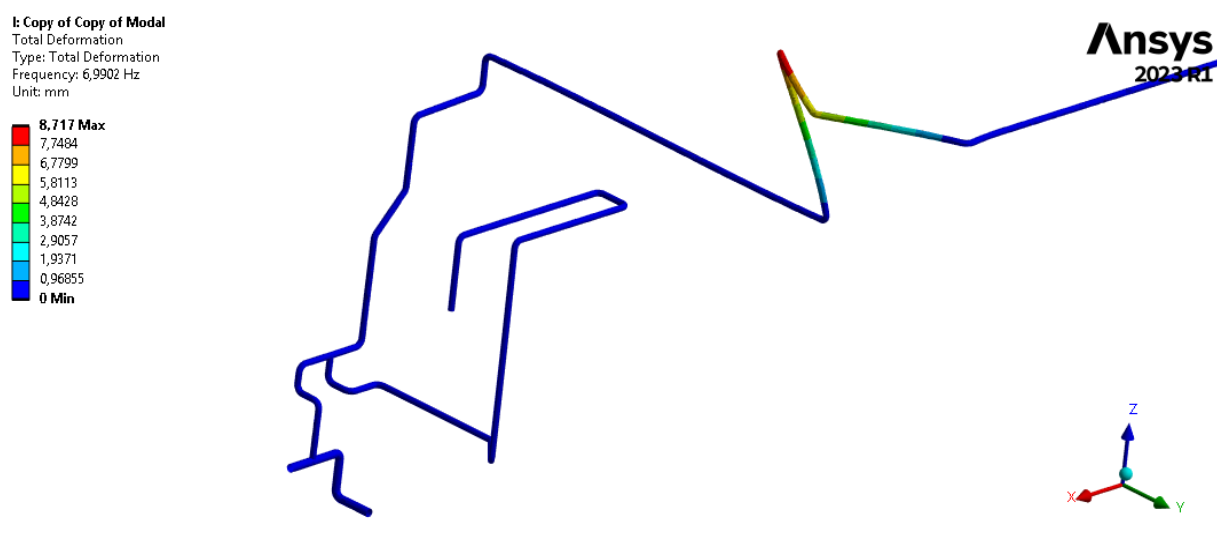

At Priner, our analyses account for thermal effects, vibrations, and dynamic loads, delivering recommendations for optimal line support. This helps prevent fatigue failures, reduce excessive loads on supports and connections and ensure safe and efficient operation.

ASME B31.3 – Process Piping Code: A U.S. standard that provides guidelines for the design of pressure piping used in refineries, chemical plants, and other facilities.

ASME B31.1 – Power Piping Code: Specifies the minimum requirements for the design, construction, and maintenance of pressure piping systems.
